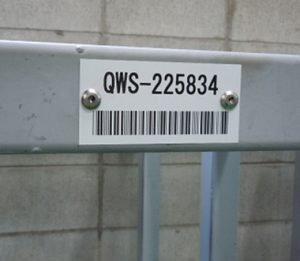

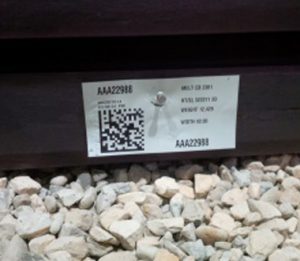

Tags can be applied with screws, nails, spot welded, or stud welded
Tag screwed to Jig for high temperature heat treatment
Tags and Ink can withstand temperatures up to 1200℃

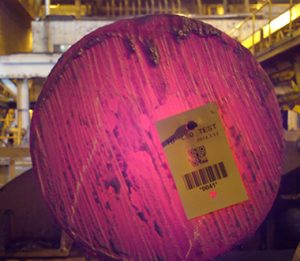

Barcodes can be applied directly to hot steel

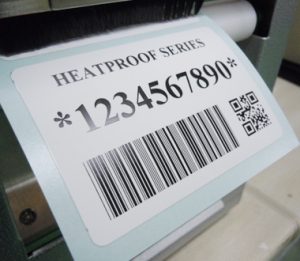

Any variable information can be printed on site using standard thermal transfer printers.
Tags for
heat Treatment Process Management

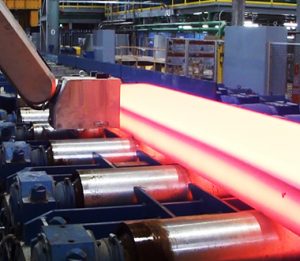

HEATPROOF tags can be attached directly on to hot steel and aluminum immediately after casting, to track products through reheat processes such as annealing or homogenizing.
YStech works with customers to implement a identification solutions that meets each company’s individual system requirements.
Lineup
HP-ST40
- Maximum heat resistance up to 80℃
- Colored tags available
- Good outdoor weather resistance
- Tear resistant
- Higher chemical resistance.
HP-ST30
- Maximum heat resistance up to 250℃
- Colored tag available.
- Good outdoor weather resistance
- Tear resistant
- Higher chemical resistance.
HP-ST20
- Maximum heat resistance up to 300℃
- Colored tags available
- Good outdoor weather resistance
- Tear resistant
- Higher chemical resistance.
HP-PC10
- Maximum heat resistance up to 300℃
- Higher chemical resistance.
- Suitable for coating process management.
HP-T40
- Maximum heat resistance up to 400℃
- Tag will not change color after high temperature exposure
- Good outdoor weather resistance
- Tear resistant
- Higher chemical resistance.
- Print and cut in thermal transfer printer
HP-T42
- Maximum heat resistance up to 400℃.
- Tag will not change color after high temperature exposure
- Good outdoor weather resistance
- Excellent tear resistance
- (higher than T40)
- Higher chemical resistance.
- Print and cut in thermal transfer printer
HP-M83
- Maximum heat resistance up to 850℃.
- Exceptional durability.
- Strong resistance if exposed to pickling process.
- (compared to HP-X82)
- Print and cut in thermal transfer printer.
HP-L80
- Maximum heat resistance up to 1000℃.
- Good outdoor weather resistance
- Print and cut in thermal transfer printer.
HP-X82
- Maximum heat resistance up to 1000℃.
- Long term durability after attachment
- Strong resistance against pickling process.
- Print and cut in thermal transfer printer.
HP-L90
- Maximum heat resistance up to 1200℃.
- Long term durability after attachment
- Print and cut in thermal transfer printer.
HP-CBR Tag
- Maximum heat resistance up to 1000℃.
- Coated steel tag provides exceptional durability
- Superior chemical resistance
- Superior scratch resistance
HP-CBR OC
- Maximum heat resistance up to 1000℃
- Coated steel tag provides exceptional durability
- Superior chemical resistance
- (higher than HP-CBR Tag)
- Superior scratch resistance (higher than HP-CBR Tag)
Applications
HEATPROOF tags can be attached directly to hot metal objects to provide reliable traceability through the most demanding heat treatment processes.
Contact YStech to discuss your unique product identification requirements.
